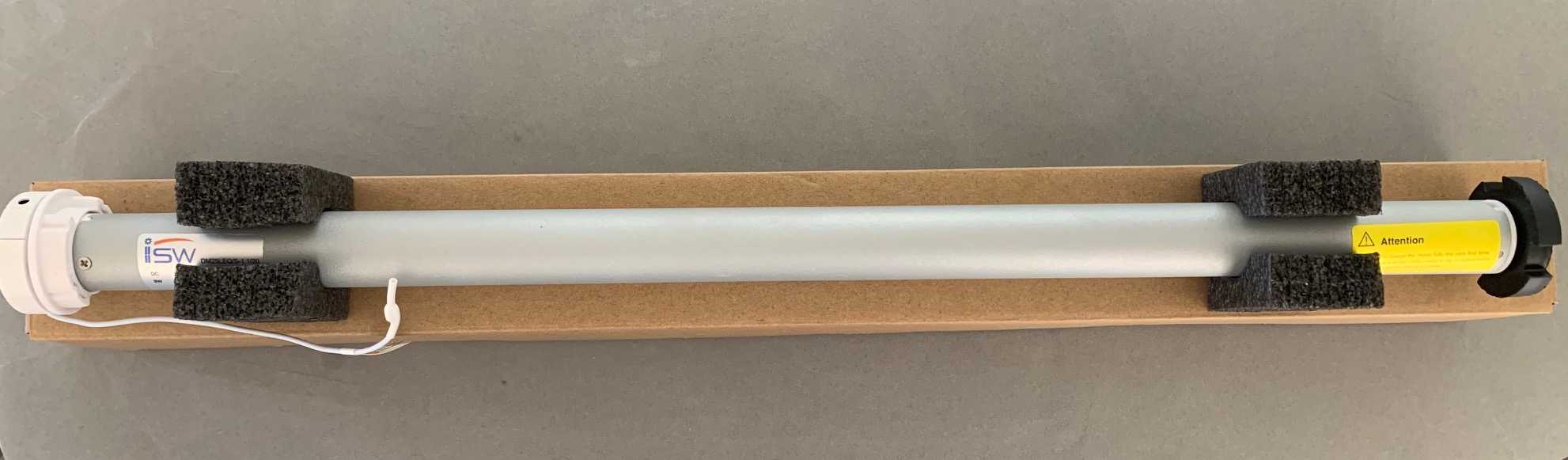

iSW25LEQ/S-1.1/20 Li-ion rechargeable battery powered Bi-Directional blinds motor

iSW25LEQ/S-1.1/20 Li-ion rechargeable battery powered Bi-Directional blinds motor
iSW25LEQ/S-1.1/20 is our new arrived Li-ion rechargeable battery powered Bi-Directional blinds motor, it's Quiet series motor, through using double helical gear technology its rates noise level is 30dB, meanwhile it's Bi-Directional motor.

It has the same of the features as iSW25LE motor such as built-in Lithium battery, built-in receiver, electronic Limit, preferred stop position etc. , it has some new advantage features :

' Bi-directional control, Status feedback;
' Speed Regulation: you can increase or reduce the running speed of motor.

It comes with the standard driving wheel (adaptor) and crown which are only suitable for 45mm (OD) roller blind tubes. We can provide you the Drive wheel adaptor and Crown for 38mm (OD) blind aluminium tube for free of charger. Meanwhile we have several different size of drive wheel adaptors and crowns to choose to meet the requirement of 38mm, 43mm, 44mm, 46mm and even 50mm OD blind tubes. As we have done a lot of retrofitting works, our adaptors and crowns can be used to retrofit the roller blinds which were made by many different roller blind manufacturers, they can be used for Acmeda and JAI blind tubes, so for those customer who want to retrofit their existing roller blinds to motorised ones, please just send an enquiry form firstly include a drawing or photos and the accurate measurement of your existing tube and the size of your blind, we most likely be able to provide you the right and correct size of drive wheel adapter and crown to suit your retrofitting needs .But please note to contact us firstly before you purchase, we will help you to investigate if they are suitable for retrofitting or not.

It's rated torque is 1.1 Nm and rated speed is 20 rpm, therefore for the 45mm tube, its lift capacity with standard adapters is around 4 kg. If you use the 480g/m2 roller blind fabric with the weight of the bottom bar being 0.8 kg, then the maximum size of the roller blind would be 3m(W) X 2.2m(H) after deducting the weight of the bottom tube.

Please note: you can only use our new DC1602H 15 channel remote or other bi-directional remotes to control this kind of Bi-directional motor , you need to purchase the remote separately, it's better to combine to use with our DD1554 mini wifi bridge or DD7002B WIFI Bridge together, so you will know the motorised roller blinds latest position status and do percentage control through the smartphone app- Connector, you can know the lithium battery power level as well, so you can recharge the lithium battery immediately when the battery power level is low to prevent the lithium battery over discharge.


•Built-in Lithium Battery,
•Built-in Receiver,
•Jog Mode
•Limit Fine Adjustment,
•Radio Lock,
•Switch Direction,
•Stall Protection,
•Program / Reset Button,
•Status Feedback,
•Electrotonic Limit,
•Preferred Stop Position,
•Speed Regulation,
•Solar Charging,
•Memorized Setting
NZ$ 299.00
Out Of Stock

STANDARD THREE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for the period of three (3) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

Rated Torque : 1.1 Nm

Rated Speed : 20 rpm

Rated Current: 0.75A

Rated Power: 9W

Emmission Frequency: 433.92 MHz,  two way communications

Motor tube Diameter : 25mm

Power input : Built-in Lithium Battery, connect to recharger DC1563AU (Option,purchase separately ) when battery's power is low or connect to solar recharging panel DC1289A (Option,purchase separately ).

Degree of Protection : IP20

Maximum Number of Turns : 6 Minutes.

Minimum width of the roller blinds: 600 mm
