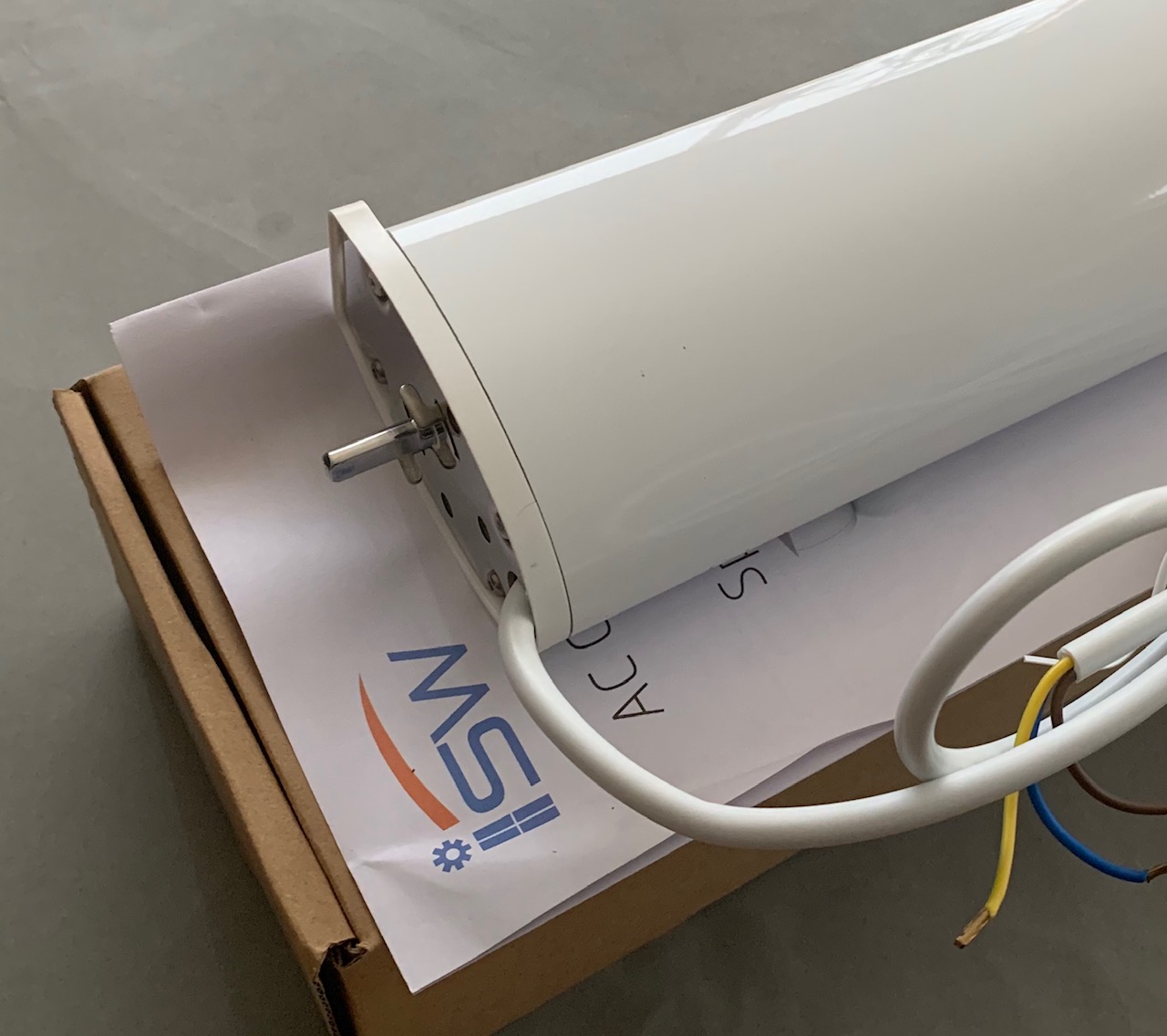

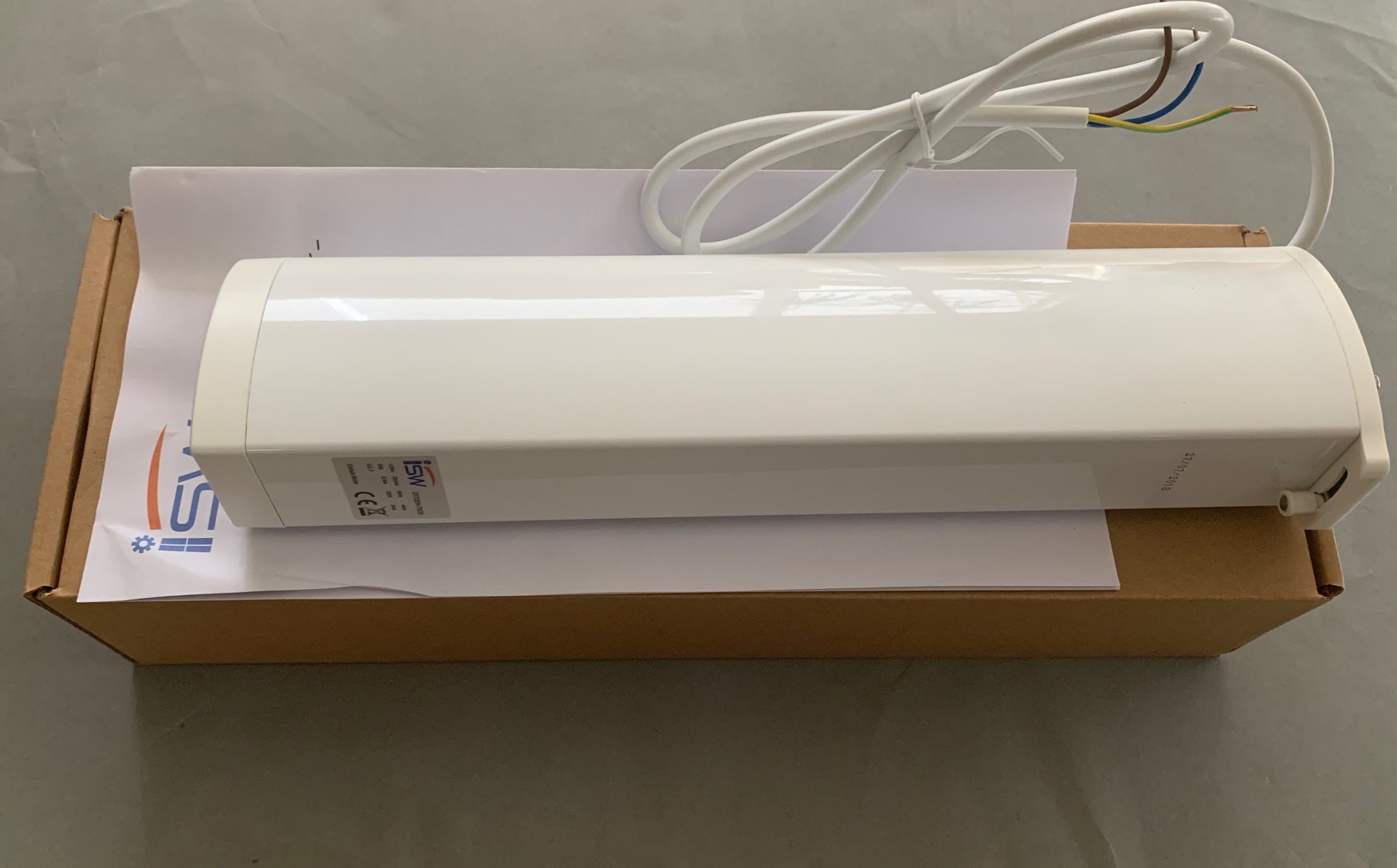

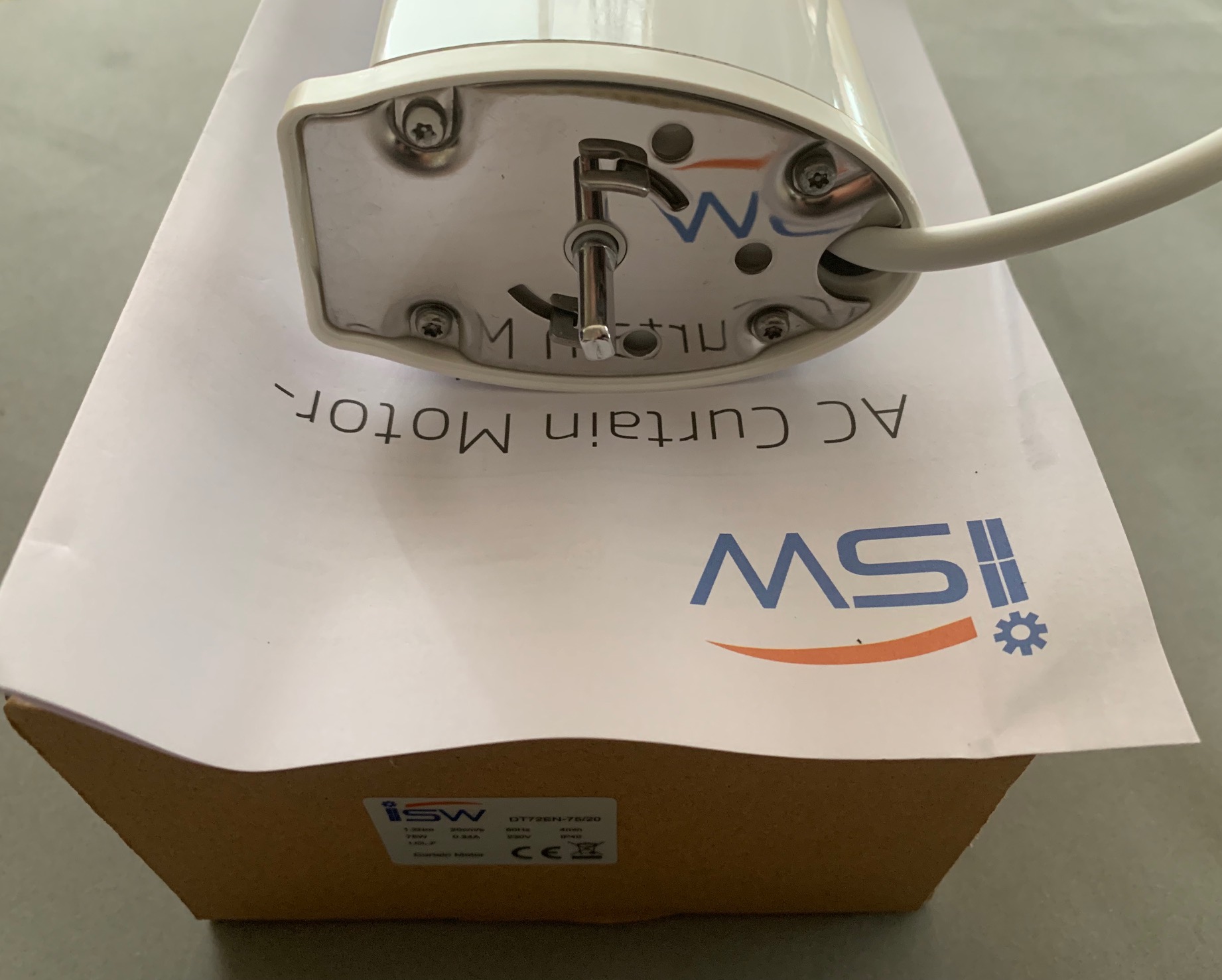

iSW 72EN-75/20 AC powered 100Kg Load-bearing capacity Curtain Motor

iSW 72EN-75/20 AC powered 100Kg Load-bearing capacity Curtain Motor
iSW 72EN-75/20 AC powered Curtain Motor is most powerful motor from the range, 75W and Load bearing Capacity: 100Kg. We can use this model of curtain motor to run extra heavy, extra long and high curtain, in extreme case, we can use two of this motors on both end of track.

Some features of this motor:
•Electronic limit, limit memorized after power off.
•Touch-start (allowing you to manually pull the curtain and the motor takes over)
•Resistance stop (stops the motor if it senses an obstruction). This is a safety feature but also is used to automatically stop the motor when it reaches the end of it's travel
•Manual operation - when there is no mains power you can still pull the curtains manually
•Built in radio control - 433MHz receiver built in.
•Built in Transformer - you can connect this into AC 240V supplies via permanent connection unit.
•Really quiet operation, the noise level less than 29 dB.

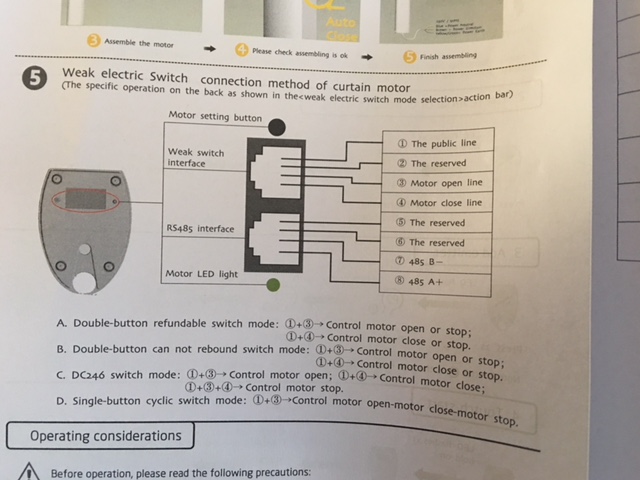

•Support the RS485 protocol control.

Please note, to use any iSW 72 type of motor, you are going to need to choose the 72 type of the curtain track which comes with 72 type of transmission box, and we are going to use very high quality component to assemble this kind of curtain track like newest luxure slip parts (carrier) etc.
NZ$ 289.00
Limited Stock:
Only 50 remaining at this price
NZ$ 260.10
Purchase Qty:

STANDARD THREE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for the period of three (3) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

Rates Torque:  1.2N.m

Open/ Close speed:   20 cm/s

Rates Voltage:  230V

Rated Power:  75W

Rated Current: 0.34A

Maximum Load:  100Kg
