iSW 72TV/W-1.2/14 WiFi Curtain Motor Compatible with Amazon Alexa and Google Home

iSW 72TV/W-1.2/14 WiFi Curtain Motor Compatible with Amazon Alexa and Google Home

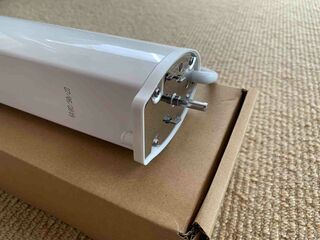

The iSW 72TV/W-1.2/14 model of WiFi Curtain Motor is our latest and most advanced motor for Smart Curtains, it has been attached with a WiFi module on the original iSW 72TV five wires curtain motor, so you can control this WiFi curtain motor directly via downloading a App called connector, it's the same app which DD7002B WiFi Bridge Hub and DD1554 mini bridge which use, through this connector App, you can use your smartphone to set the timer and scene and remotely control the curtain anywhere in the world. There are two way communications between the WiFi curtain motor and Connector App through the WiFi, the motor can feedback the status to your smartphone, so you will know the curtain position, of cause you can do percentage control the curtain then.

This model is good to those customer who haven't installed many motorised curtains or roller blinds and don't want to purchase extra WiFi Bridge Hub or other control Hub to control them by smartphone, you can simply just purchase this WIFI curtain motor to save your hard-earned money.

As you know, The iSW72TV model is 5 wires curtain motor, it contains Blue-Neutral line, Black-Down line, White/Grey-upline, Brown- Live line, Green/yellow- Earth line, it can be connected with either our DC866A Double button interlock switch or our DC865A Double button Mechanical rebound Switch, so it's good for those who do not want to buy the smart home hub, but simply want to use their smartphone to control the motorised curtain track remotely or via setting the timer, scene etc.
If you don't want the switch, then you just don't need to connect the Up line and Down line, simply just connect other three wires like we connect 3 wires device normally. Although you can control the WiFi curtain motor mainly through the App, but in order to set up the WiFi curtain motor first time easily and use all of the motor functions, we still recommend you to use the remote to do initial setting when you set up the WiFi curtain motor first time.

Apart from iSW 72V/W has WiFi connection and Smartphone App control function, it has all of the functions of 72TV, Like :

Some features of this motor:
•Electronic limit, limit memorized after power off.
•Touch-start (allowing you to manually pull the curtain and the motor takes over)
•Resistance stop (stops the motor if it senses an obstruction). This is a safety feature but also is used to automatically stop the motor when it reaches the end of it's travel
•Manual operation - when there is no mains power you can still pull the curtains manually
•Built in radio control - 433MHz receiver built in.
•Built in Transformer - you can connect this into AC 240V supplies via permanent connection unit.
•Really quiet operation, the noise level less than 29 dB.
•Support the RS485 protocol control.

Please note, to use any iSW 72 type of motor, you are going to need to choose the 72 type of the curtain track which comes with 72 type of transmission box, and we are going to use very high quality component to assemble this kind of curtain track like newest luxure slip parts (carrier) etc.

iSW72TV/W WiFi curtain motor is best value curtain motor so far, because you don't need to purchase the switch, remote, you can just simply to set the scene, timer or remote control anywhere in the world and best of the all, you even can do percentage controlling the curtain track via the Connect app, or you just use the Touch-start function to control the motor if you don't want to take out your smartphone to control.

For this WiFi Curtain motor Configuration, please watch the Youtube video:

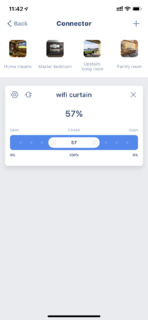

You need to download the App which called "Connector" to your smartphone firstly, then register an account and follow the instruction step by step.

Please note:
1, Like all of other Smart Home devices, this WiFi curtain motor is not just simply Plug and Play, it needs the setting and programming, so for those persons who doubt themselves have the ability to do so, please do not buy.
2, Before you do the connection between the WiFi motor with you home network, you should connect your smartphone to 2.4GHz WiFi firstly since this Connector App only can connect to 2.4 GHz WiFi network.

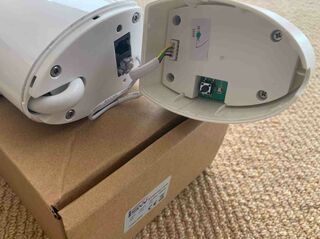

3, If you fail to set up the connection for a couple of times, then you can keep pressing the setting bottom on the WiFi module for 10 seconds to restore the factory setting, then you can start over the setting again.
NZ$ 289.00
Limited Stock:
Only 53 remaining at this price
NZ$ 260.10
Purchase Qty:

STANDARD THREE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for the period of three (3) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

Rates Torque:  1.2N.m

Open/ Close speed:   14 cm/s

Rates Voltage:  110~240V

Rated Power:  16W

Rated Protection: IP40

Maximum Load:  50Kg
