Custom Made S-fold ( Ripplefold / Wave Fold ) Motorised Curtain Track
> Home > Products > MOTORISED CURTAINS > Motorised Ripplefold (Wave Fold / S Fold) Curtain Tracks > Custom Made S-fold ( Ripplefold / Wave Fold ) Motorised Curtain Track
Why Choose Ripplefold (S-Fold / Wave Fold) Curtains?

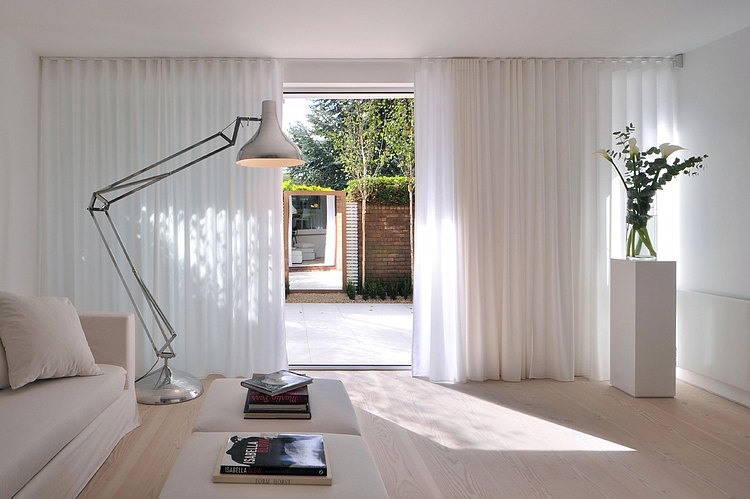

Modern interior design is leaning towards a simple, elegant aesthetic, making Ripplefold curtains (also known as Wave Fold or S-Fold) incredibly popular. Compared to traditional pinch-pleated curtains, which can look heavy and bulky, Ripplefold curtains offer a sleek, contemporary, and versatile look.

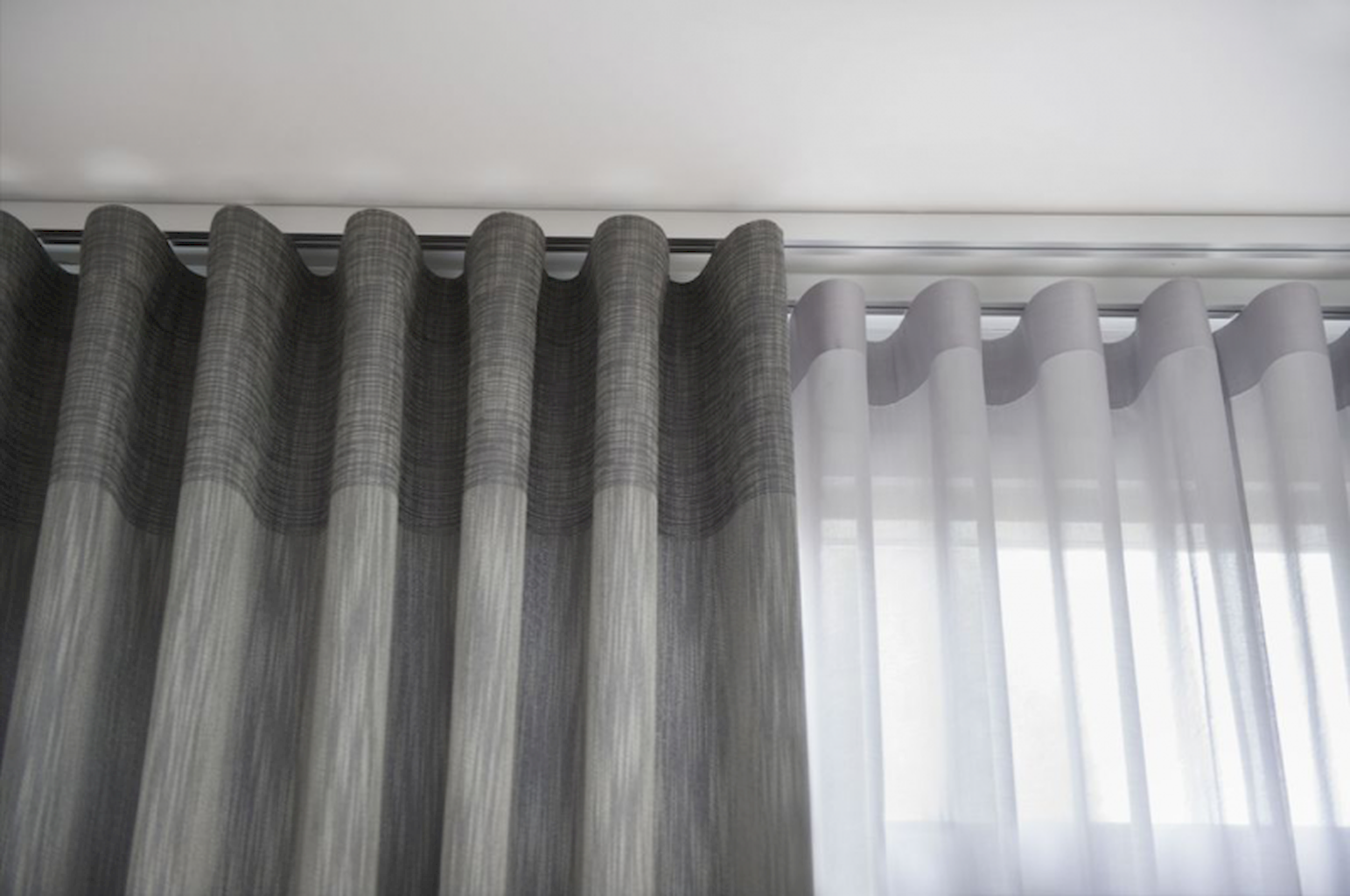

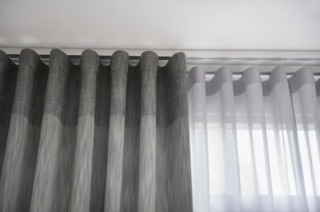

Unlike traditional curtains that rely on pleats or gathers, wave curtains utilise a special flat tape sewn into the heading. This tape creates a soft, sinuous 'S'-shaped wave effect from one end of the track to the other. The fabric hangs neatly directly below the track, allowing it to drape beautifully and add a touch of sophistication to any room.
How Our Motorised Ripplefold System Works

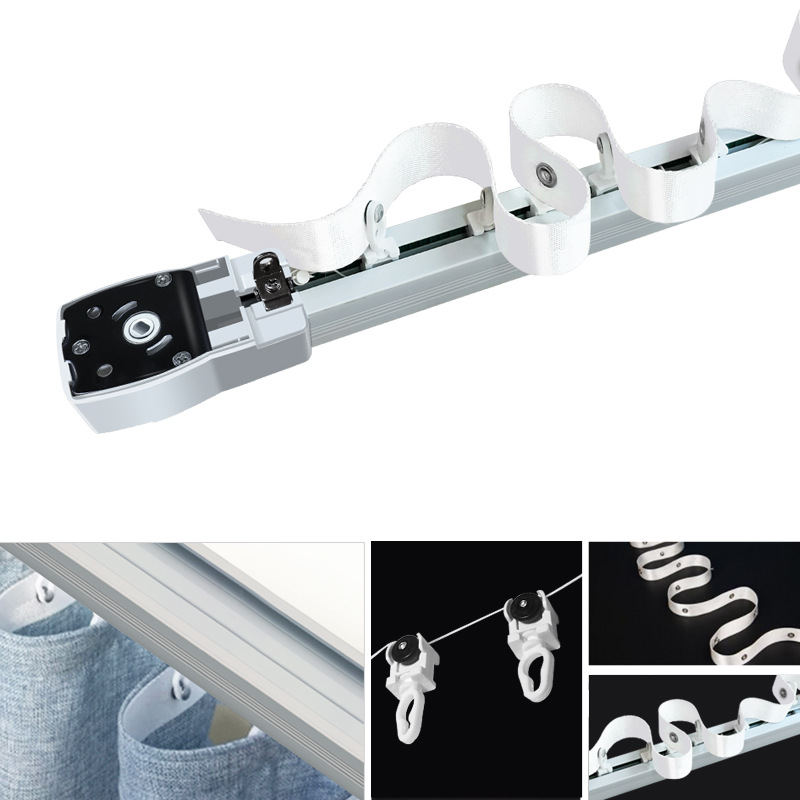

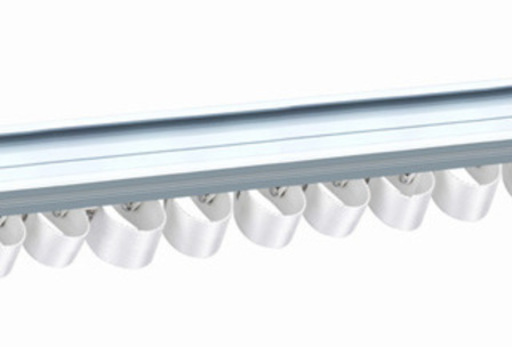

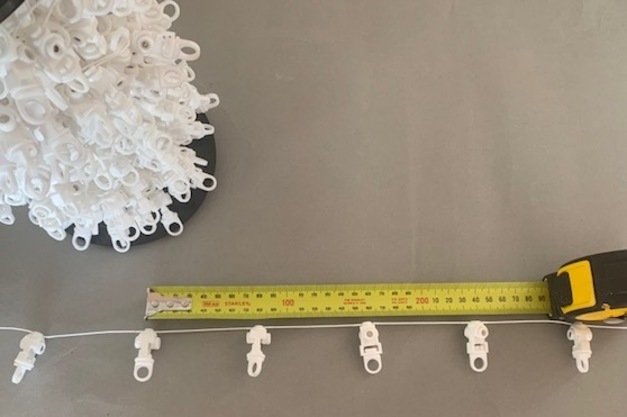

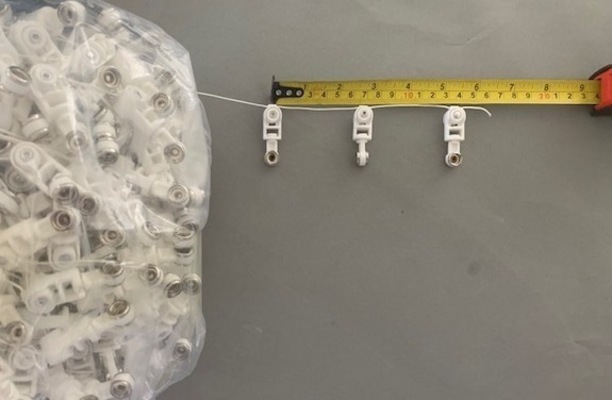

Our motorised curtain tracks feature specialised carriers (runners) connected by an internal glider cord held at a fixed distance. This smart design maintains the perfect fullness of your S-Fold curtains and prevents them from pulling flat when closed.

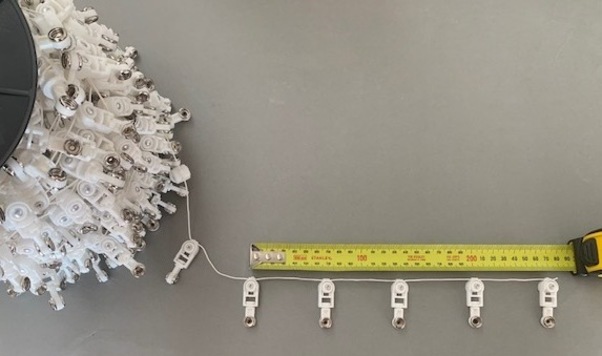

- Pre-assembled 80mm Wave Spacing: Our tracks come standard with pre-assembled glider cords featuring an 80mm spacing. This creates a relaxed, elegant wave with broader, more generously spaced folds—an excellent choice for a sophisticated, luxurious look, particularly for wide windows and larger living spaces.
- Customizable Curtain Hook Spacing: You can easily adjust the space between the two curtain hooks, defined by the number of empty pockets on the heading tape (known as the Pocket Factor). The pocket factor directly affects the final depth and stack sizes of your curtain.
iSmart Window Motorised S-Fold / Wave Fold Track Specifications
To help you plan your installation, please refer to our system configuration options below. Note for Double Tracks: The minimum pelmet depth required is 100mm per track (100mm x 2).
| Configuration | Single Track (Option A) | Single Track (Option B) | Double Track |
|---|---|---|---|
| Wave Size / Spacing | 80mm | 80mm | 80mm |
| Fullness Ratio | 1.75 : 1 | 2.0 : 1 | 1.5 : 1 |
| Heading Tape Pocket Factor (Hook Spacing) | 7 Pockets (140mm) | 8 Pockets (160mm) | 6 Pockets (120mm) |
| Minimum Pelmet Depth Needed (Wave Depth) | 120 mm | 140 mm | 100 mm per track (100mm x 2) |
Core Calculation Formulas:
- Number of Hooks Required:
[Curtain Track Length (mm) ÷ 80mm] + 2 ~ 3 Extra Hooks(for hemming) - Heading Tape Length (Fabric Needed):
[Curtain Track Length × Fullness Ratio] + 280mm Extra Length(for hemming)- Alternative Formula:
Number of Hooks × Heading Tape Pocket Factor (Hook Spacing)
- Alternative Formula:
Quick Calculation Example
If you are ordering a 2-Meter (2000mm) Track with a 1.75 Fullness Ratio:
- Track Length: 2000mm
- Glider Cord Spacing: 80mm
- Hooks Needed: (2000mm ÷ 80mm) + 2 extra hooks = 27 pcs of hooks
- Curtain Fabric Width / Tape Length Needed: 2000mm × 1.75 + 280mm extra = 3,780mm (or 27 hooks × 140mm hook spacing = 3,780mm)
Complementary Accessories (Sold Separately)

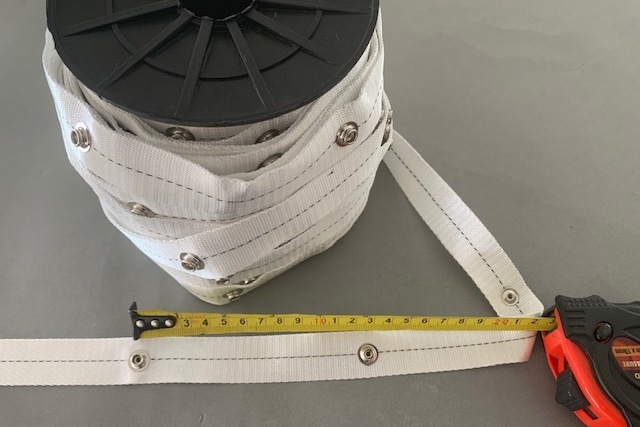

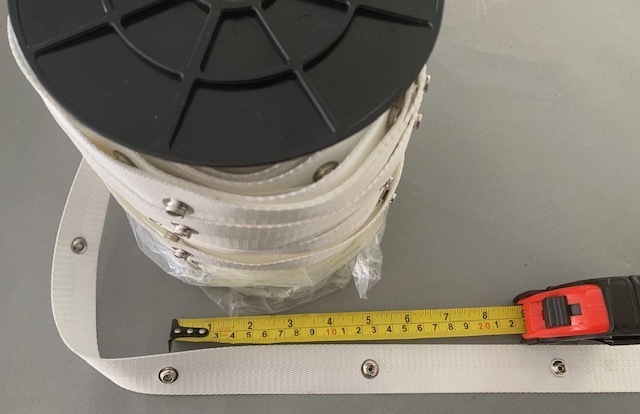

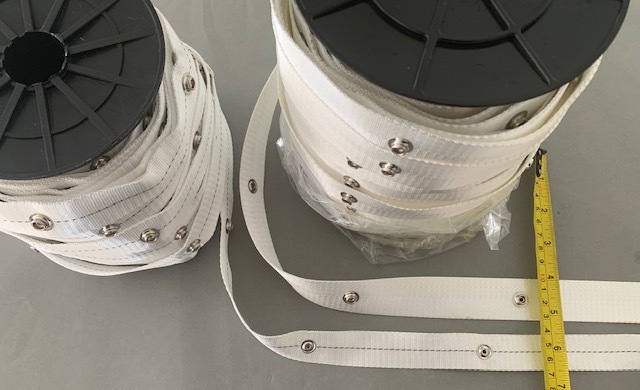

- Hooking Style S-Fold Curtain Heading Tape (Pulse Tape) – Please note: Heading tape shown in photos is not included and must be ordered separately.

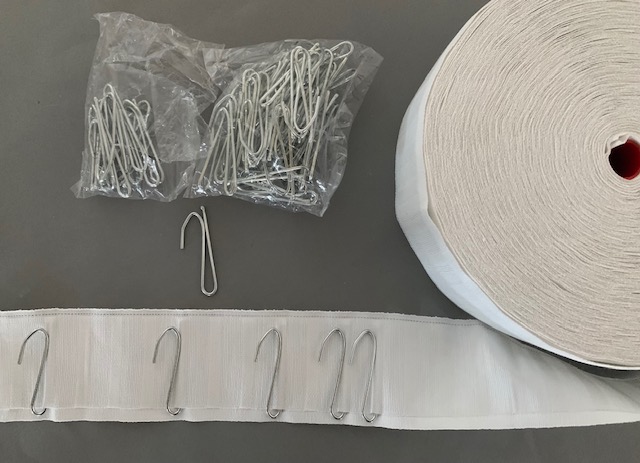

- Compatible Hooks for Pulse Tape
Configuration & Controls
- Draw Type: One-way draw (opens from one end) or Two-way draw (opens from the middle).
- Mounting: Ceiling-mounted or wall-mounted.
- Track Setup: Available in Single or Double track configurations.
Important Ordering Tip: Curtain Stacking Space
Because S-Fold tracks use 12.5 runners per meter (compared to just 8 runners per meter on traditional pinch-pleat tracks), S-Fold curtains require more space to gather (stack) on the sides when fully open. We highly recommend ordering your track slightly longer than your window width. This ensures that when the curtains are fully drawn, they stack neatly outside the glass area and do not block your window view.
Proudly Made in New Zealand
All our motorised curtain tracks are custom-made locally in Auckland, NZ, and dispatched within 10 working days.
Price on Application (POA):
Pricing varies based on your track length and preferred curtain motor type. Please submit our enquiry form with your specific curtain details, and our team will provide a tailored quote.
Frequently Asked Questions (FAQ)
Q: Can I use ready-made S-Fold curtains from retail stores (like Freedom Furniture) with this track?
A: Yes, absolutely! Our track features a versatile hook-style design. You can easily hang ready-made S-Fold curtains from local stores like Freedom by simply inserting the hooks into the glider cords on our motorised track.
A: Yes, absolutely! Our track features a versatile hook-style design. You can easily hang ready-made S-Fold curtains from local stores like Freedom by simply inserting the hooks into the glider cords on our motorised track.
Q: What is the difference between single and double motorised tracks regarding installation space?
A: A single track requires less clearance and is ideal if you only want a sheer or a blackout curtain. A double track configuration allows you to have both (e.g., a sheer curtain for daytime privacy and a thick blackout curtain for night). Please ensure your pelmet or ceiling space meets the minimum depth requirements shown in our specification table above (minimum 100mm depth per track).
A: A single track requires less clearance and is ideal if you only want a sheer or a blackout curtain. A double track configuration allows you to have both (e.g., a sheer curtain for daytime privacy and a thick blackout curtain for night). Please ensure your pelmet or ceiling space meets the minimum depth requirements shown in our specification table above (minimum 100mm depth per track).
Q: Do you provide the curtain fabric, heading tape, and hooks with the track?
A: No, this product listing is for the custom-made motorised track and its internal runners only. The curtain fabric, heading tape (Pulse Tape), and hooks are sold separately. You can purchase the matching tape and hooks directly from the links provided in our "Complementary Accessories" section.
A: No, this product listing is for the custom-made motorised track and its internal runners only. The curtain fabric, heading tape (Pulse Tape), and hooks are sold separately. You can purchase the matching tape and hooks directly from the links provided in our "Complementary Accessories" section.
Q: How do I control the motorised S-Fold curtain track?
A: We offer a wide range of smart home automation control accessories. Depending on the motor type you choose, you can control your curtains via a remote control, smartphone app, voice assistants (like Amazon Alexa or Google Home), or integrate them into a Z-Wave smart home system.
A: We offer a wide range of smart home automation control accessories. Depending on the motor type you choose, you can control your curtains via a remote control, smartphone app, voice assistants (like Amazon Alexa or Google Home), or integrate them into a Z-Wave smart home system.
Q: Can the track be bent for bay windows or curved corners?
A: This standard listing is for straight tracks. If you have a corner window or require a curved setup, please check out our [Motorised Bending Curved Curtain Tracks] section or contact us directly with your window dimensions for a specialised solution.
A: This standard listing is for straight tracks. If you have a corner window or require a curved setup, please check out our [Motorised Bending Curved Curtain Tracks] section or contact us directly with your window dimensions for a specialised solution.
