DC114M Dry contact in power emitter

DC114M Dry contact in power emitter
Most of our tubular motors ( 25TE, 25 LE and 25CE model ) and curtain motors ( 82TN model) contain built-in RF 433.2 MHz receiver, they only have two wires ( Live Lead and Neutral lead) or three wires ( live,neutral,earth), we use the RF remote to control them via RF signal, so it's quite tricky to connect them with Home Automation system directly, there are several different ways to achieve that, but many are quite costly and too complicate to set up, our option is use another AC power emitter which can be connected and controlled by many compatible home automation system like mains power AC Z-Wave blind controller like Fibaro roller shutter module or Qubino Flush Shutter Z-Wave Plus AC power controller, then let the emitter to send the RF signal to motor's receiver. But you should bear in mind, because you use Z-Wave roller shutter module to control those built-in receiver motors like switch Via DC114M not directly, so the Z-wave controller can not get the power and energy consumption from such Z-wave Home Automation solution, you can't do calibration as well, so Z-wave controller can not correctly recognize a roller blind position. you can only control the motor up (open), down (close) and stop like switch.

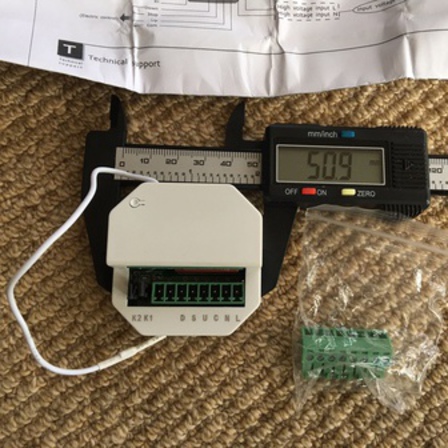

This emitter is quite small (Size 51mm x 51mm), it can be installed behind wall and the switch, but it's not necessary to be installed by near the roller blind, you can install it at any place where you feel it's handy to control or you can install all of the DC114M together inside of the cabinet or a wiring closet, just the place within the distance of the RF signal can reach all of the roller blinds.

Meanwhile you can still keep the handheld remote control, the DC114M will give you the opportunity to control the tubular motor which contains built-in receiver by the compatible home automation system.

The emitter DC114M is used for our built-in receiver type tubular motor and curtain motor, in three different modes, the switch is different,corresponding run upward, stop and downward emission command operation vary. In our case, you should choose the double bond interlock switch control mode,so you can control the motor to up,down or stop without any problem from the UI of z-wave controller.

Ease of use and installation by qualified electrician only .

Because you can simply add up to 20 preset another remote's codes to this emitter, so you can control up to 20 roller blinds up or down together in the same time, but not individually,if you want to control the different motors individually, then you have to purchase them separately.

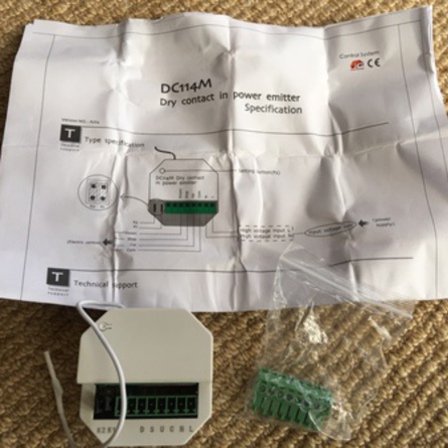

You can check the link below for the DC114M Manual to see if your home automation system is compatible with DC114M or not.

This product is similar to the Somfy products, please check the links:



NZ$ 69.00
NZ$ 55.20
Purchase Qty:

STANDARD ONE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for a period of one (1) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

• Input Voltage: AC 220V/50Hz

•Output Dry Contact Voltage: 220V

•Transmittinf frequency 433.92MHz

•Transmitting distance: outdoor 150 meters, indoor (between two walls) 35 meters
