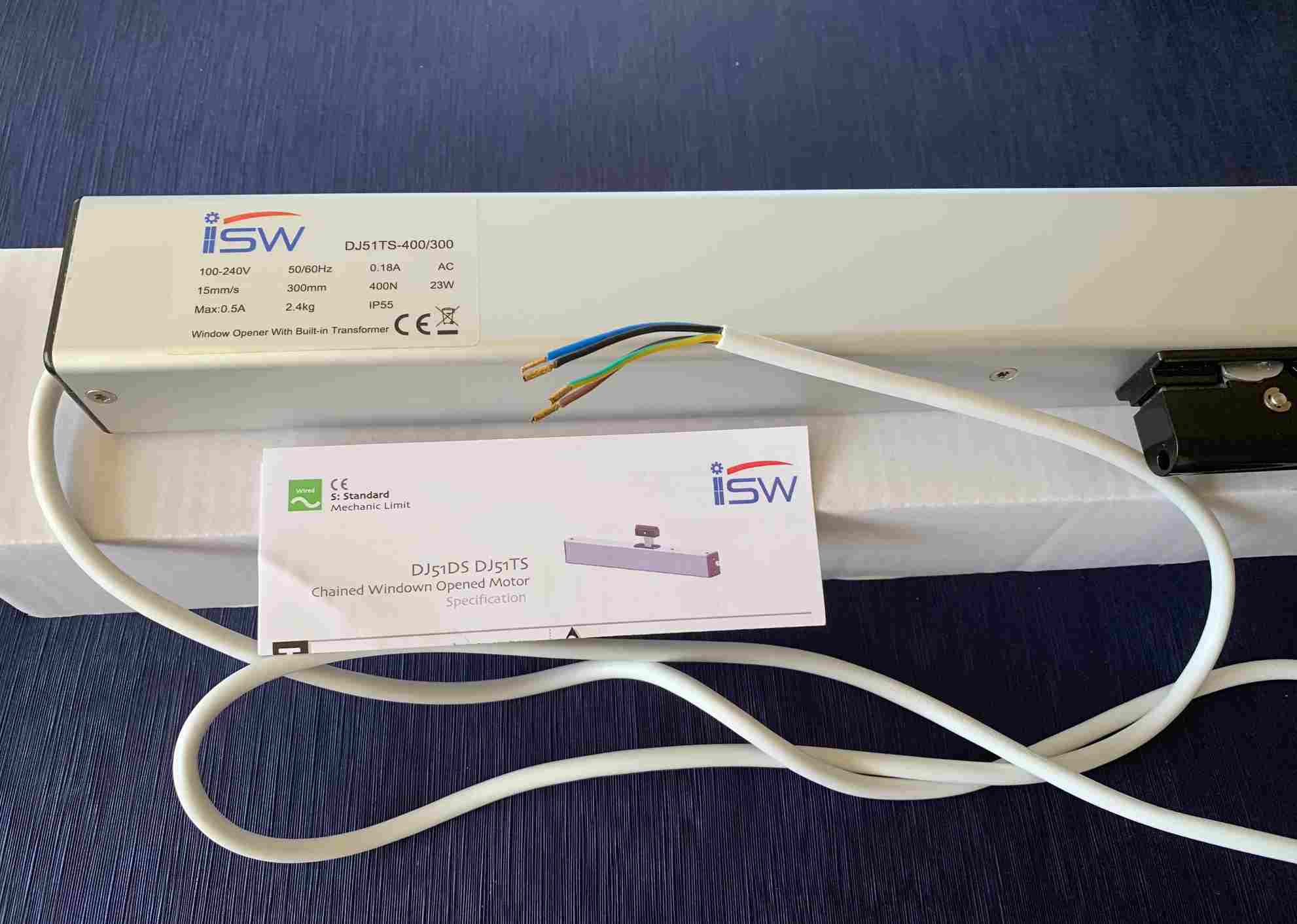

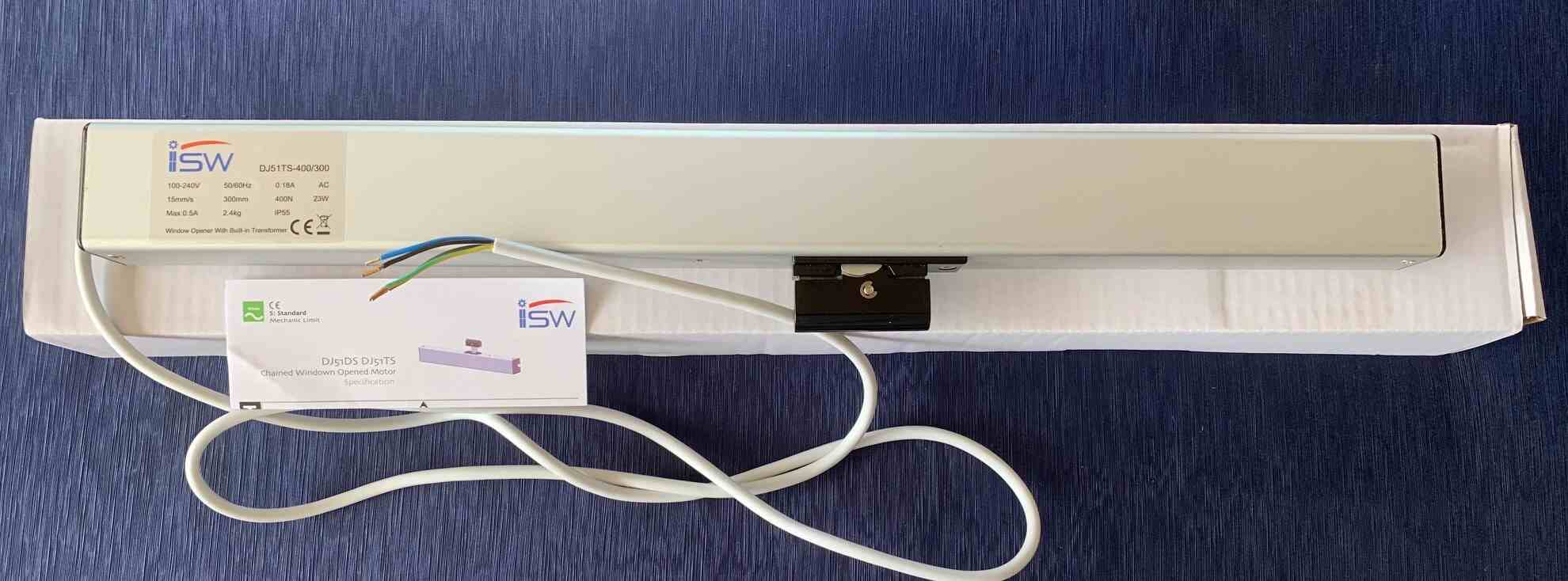

AC Powered Chain Window Opener iSW DJ51TS-400N/300mm

AC Powered Chain Window Opener iSW DJ51TS-400N/300mm
AC Powered Chain Window Opener iSW DJ51TS-400 N/300mm is equipped for electric casement window and electric hung window ( Top Hung , Middle Hung , Bottom Hung and Side Hung ), especially for special places where the window is too high for people to operate with.

Please note: this window opener has to go full 300mm open or close distance, the limit position is not adjustable, so you have to remove the aluminium window side stay off, otherwise since the opener has the overloaded protection , then you need to connect the opener to power again. If you do not want the window opener to go 300mm full distance, the other solution is you have to use the remote or switch to stop the opener before it reaches 300mm distance (Standard/Mechanic Limit).



Push/pull Force: 400 N


Limit Speed:10mm/s

Working Voltage:230V Working Current: 0.3A Operation

Temperature: -15~+50

Protection degree: IP55

Multi-motors With One Switch and there are three controlling solutions: 1, it can be control by our DC865A double button Mechanical rebound switch , DC866A double button interlock switch or our latest DC2601 Double button Interlock Switch. 2, If you want to control the window opener by our RF remote and DD7002B WiFi bridge, then you can connect it to the DC1690 single channel receiver. 3, If you want to use the switch and App to control the window opener, then you can use our DC2601 switch and DC114S wireless receiver.

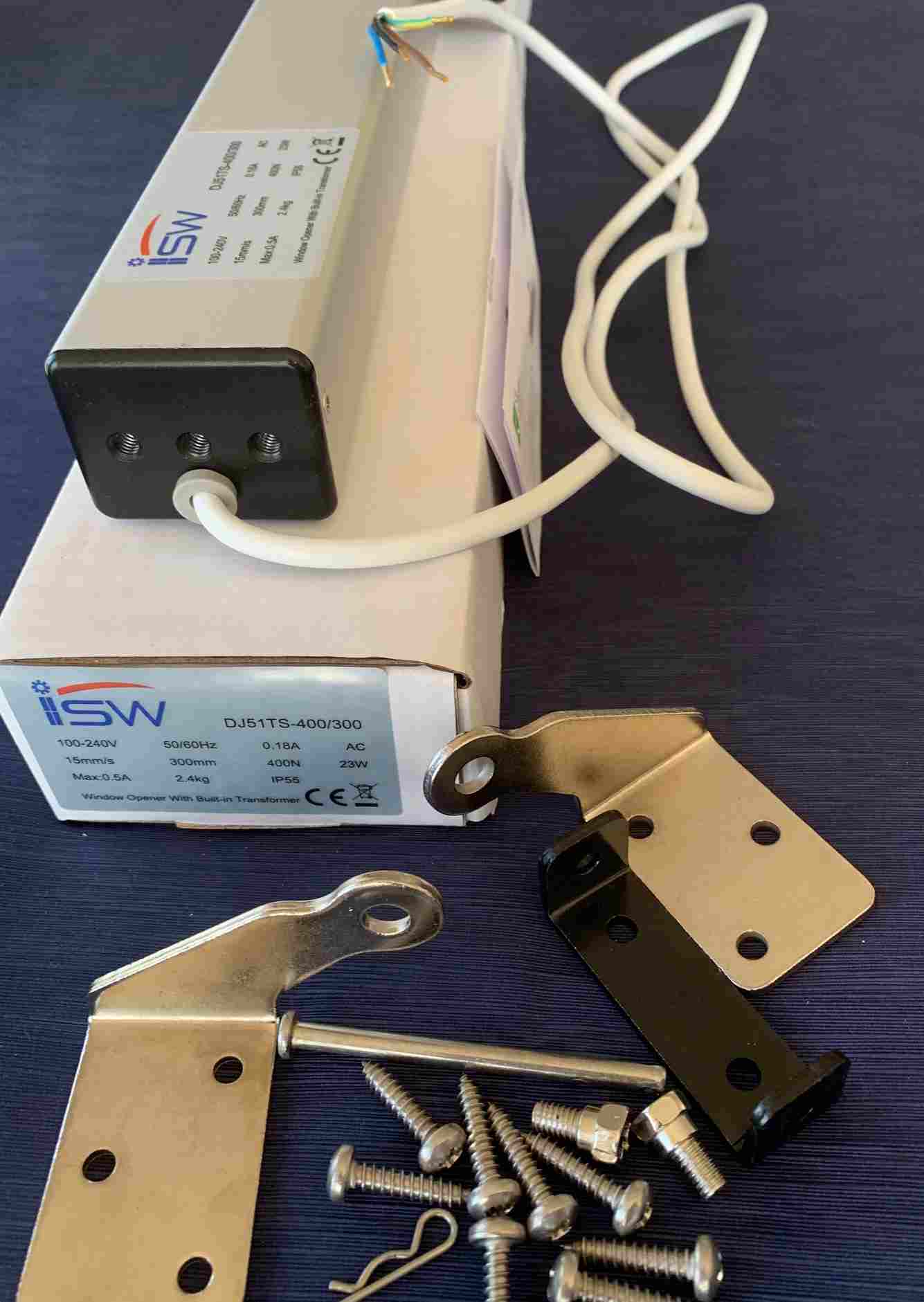

Multiple Installation Options: casement window and hung window ( Top Hung , Middle Hung, Bottom Hung and Side Hung ). It comes with mounting brackets (L and R) and chain holder, pin and screws etc. accessories. 3 Years warranty for iSW DJ51TS Actuator.

NZ$ 299.00
Limited Stock:
Only 21 remaining at this price
NZ$ 269.10
Purchase Qty:

STANDARD THREE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for the period of three (3) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

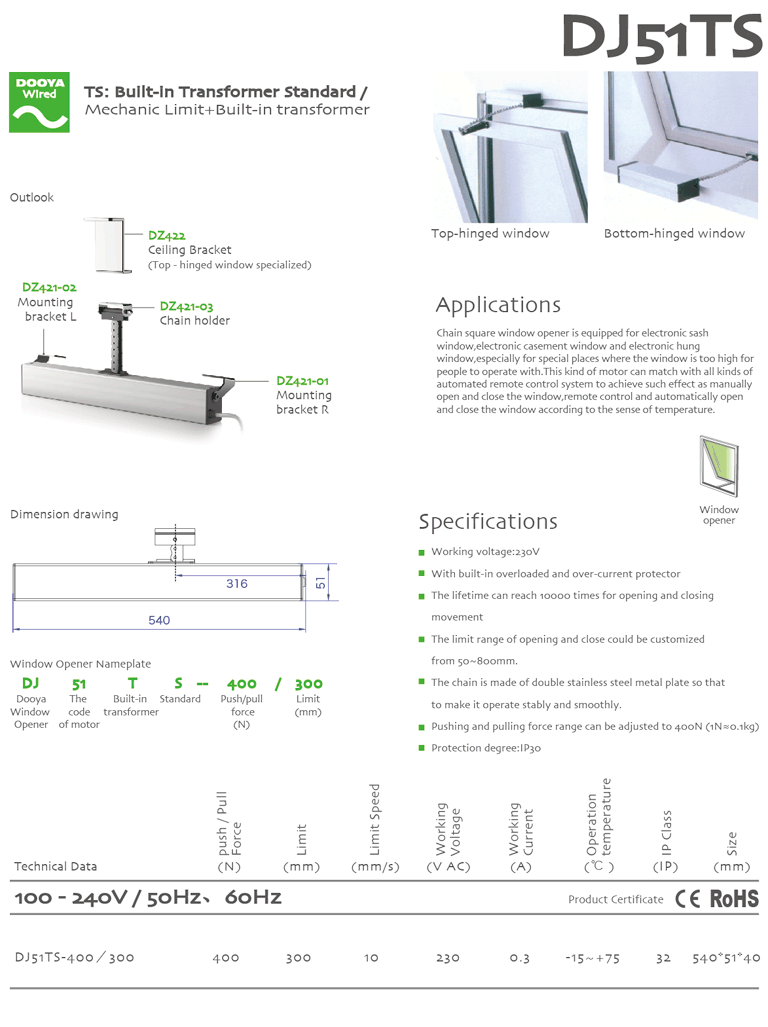

a,Working voltage: 100~240V 50/60Hz

b,With built-in overloaded and over -current protector

c,The lifetime can reach 10000 times for opening and closing movement

d,The chain is made of double stainless steel metal plate so that to make operate stably and smoothly.

e,Pushing and pulling force range can be adjusted to 400N(1N=0.1kg)

f,Protection degree: IP55

g, Length: 537mm
