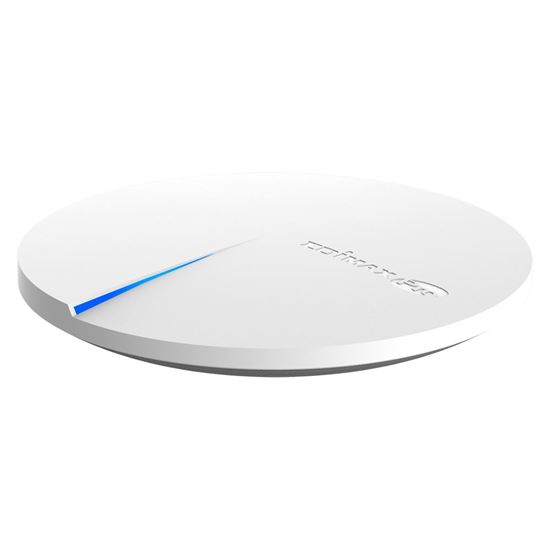

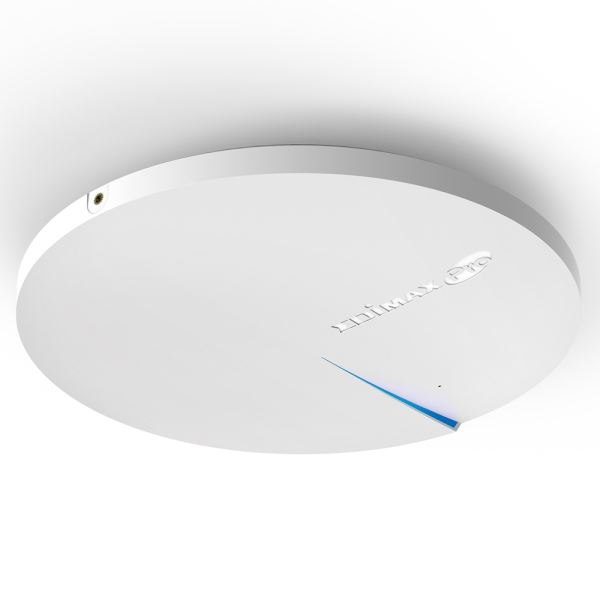

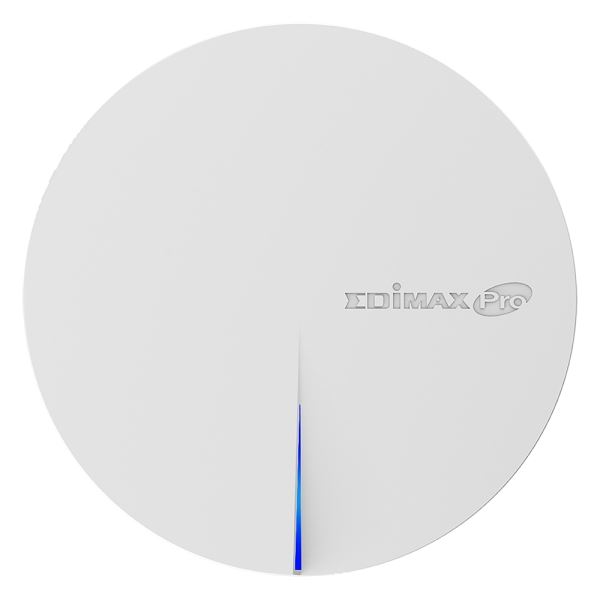

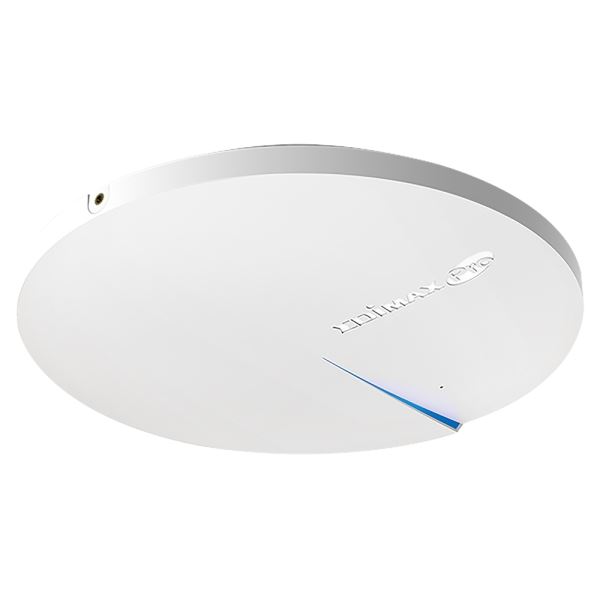

EDIMAX 802.11AC Ceiling-Mount PoE Model: CAP1750

EDIMAX 802.11AC Ceiling-Mount PoE Model: CAP1750
EDIMAX 802.11AC Ceiling-Mount PoE Access Point. Multiple SSIDs. Fast Roaming. Seamless Mobility. Supports Edimax Pro Network Management Suite with AP array.

The CAP1750 is a powerful wireless solution designed to meet the needs of modern mainstream businesses with the latest IEEE 802.11ac technology for wireless speeds up to 1750Mbps. Industrial-grade performance and build quality combined with user-friendly operation, super-fast wireless speed, an extensive feature set and a practical, ceiling-mount design make an ideal dual-band solution for enterprise environments.

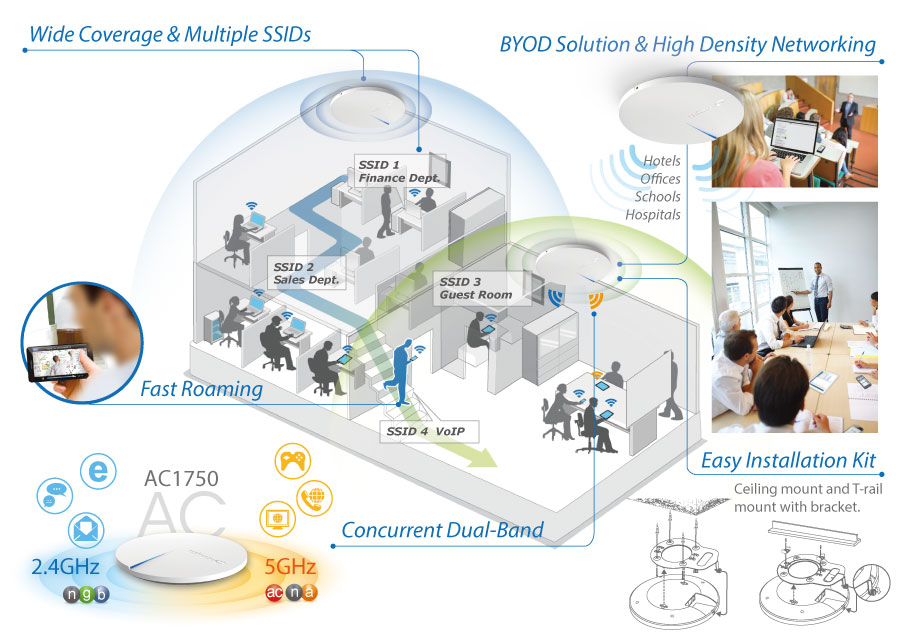

For businesses that demand security, flexibility and speed – the Edimax Pro series has a wide range of potential applications from office environments to schools, campuses, hotels and hospitals. High-density capacity for up to 100 simultaneous users is ideal for BYOD workplaces or other environments with a high volume of users and wireless devices. Multiple SSIDs can be configured for different departments or user groups and a built-in RADIUS server provides additional verification with a scalable AP array architecture for central management of multiple access points. Fast roaming for seamless transitions between access points, Power over Ethernet support (PoE) and an intuitive web-based management interface provides flexibility for deployment and extensive management options for company MIS departments and network administrators.

When performance and security are critical for your business, you need products that are engineered for your industry. The Edimax Pro series is designed to help your business and provide the connectivity that you rely on every day, with safety and effectiveness guaranteed.
NZ$ 299.00
Limited Stock:
Only 2 remaining at this price
NZ$ 194.35
Purchase Qty:
LAN Interface  Giga x1
USB USB 2.0 x1
(Optional Ethernet Adapter for 2nd LAN)
PoE 802.3at
Antenna Type: 6x Built-In PIFA (3x 2.4GHz, 3x 5GHz)
Gain: 4.38dBi (2.4GHz), 5.34dBi (5GHz) Max.
Power DC: 12V/2A
802.3at (PoE Injector Optional)
Dimensions 20.8 (D) x 3.15 (H)cm
Weight 565g
Power Consumption (Full Loading) 15W; 19.2W (With USB)
Mounting Ceiling
WPS/Reset Yes
LED Indicator 1. Power LED
2. Diag LED
Environmental Conditions  Operating Temperature: 0°C ~ 50°C
Operating Humidity: 90% or Less
Power Saving 802.3az
Internal Buzzer Yes
Housing UL94-5VB Flammability Rating Plastic
Standard 802.11 a/b/g/n/ac Concurrent Dual-Band
No. of Radios 2
Receiver Sensitivity ≤-93dBm
Certification CE/FCC
Fast Roaming Yes
Number of SSIDs 16 (2.4GHz) + 16 (5GHz)
Maximum Data Speed 450 + 1300Mbps
Concurrent Clients Up to 50 Per Radio
RF Specifications
Frequency Band
  • Radio I: 802.11b/g/n 2.412~2.484 (GHz)
  • Radio II: 802.11a/n/ac 5.18~5.24 (GHz), 5.745~5.825 (GHz)
    (The supported frequency band is restricted by local regulations.)
Operation Channels
  • 2.4GHz: US/Canada 1-11; 2.412~2.462GHz
                     Europe 1-13; 2.412~2.472GHz
                     Japan 1-14; 2.412~2.484GHz
  • 5GHz: Country dependent for the following ranges:
                  US/Canada: Band 1:36, 40, 44, 48; 5.180~5.240 (GHz)
                  Band 4:149, 153, 157, 161, 165; 5.745~5.825 (GHz)
                  Europe: Band 1:36, 40, 44, 48; 5.180~5.240 (GHz)
Transmit Power •802.11b
•802.11gn (2.4G)
Receiver Sensitivity •802.11b
•802.11gn (2.4G)
  ≤ -84dBm@MCS0
  ≤ -59dBm@MCS9
  ≤ -80dBm@MCS10
  ≤ -58dBm@MCS19
Encryption WEP/ WPA/WPA2
Wireless L2 Isolation Yes
Station Isolation Yes
IEEE 802.1x Authenticator Yes
EAP Authentication PEAP
Hidden SSID Yes
MAC Address Filter Yes
Wireless STA Yes
Rogue AP Detection
(w/ Edimax Pro Network Management Suite (NMS))
Wireless Mode AP/WDS AP/WDS Bridge/Repeater
802.1q VLAN Yes (VID = 1-4095)
Spanning Tree RSTP
QoS WMM (802.11e)
Max Associated Station No.
Pass-Through IPv6 and VPN (PPTP, L2TP/IPsec)
DSCO (802.1p) Yes
Multicast Rate up to 54Mbps Yes
Deployment Standalone: AP mode
Master AP mode: Can manage 16x Edimax Pro APs
Managed AP mode: Be managed by Edimax Pro AP
Controller (APC500) or Edimax Pro Master AP
Configuration HTTP / HTTPS
SNMP v1, v2c, v3
CLI (Telnet, SSH)
RADIUS Server Built-In
Auto-Channel Yes
Private MIB Yes
Mounting Bracket Ceiling-Mount Bracket Kit
Power Adapter 12V/2A Power Adapter
Optional Accessories EU-4306 USB 3.0 Gigabit Ethernet Adapter
GP-101IT   IEEE802.3at PoE Injector
