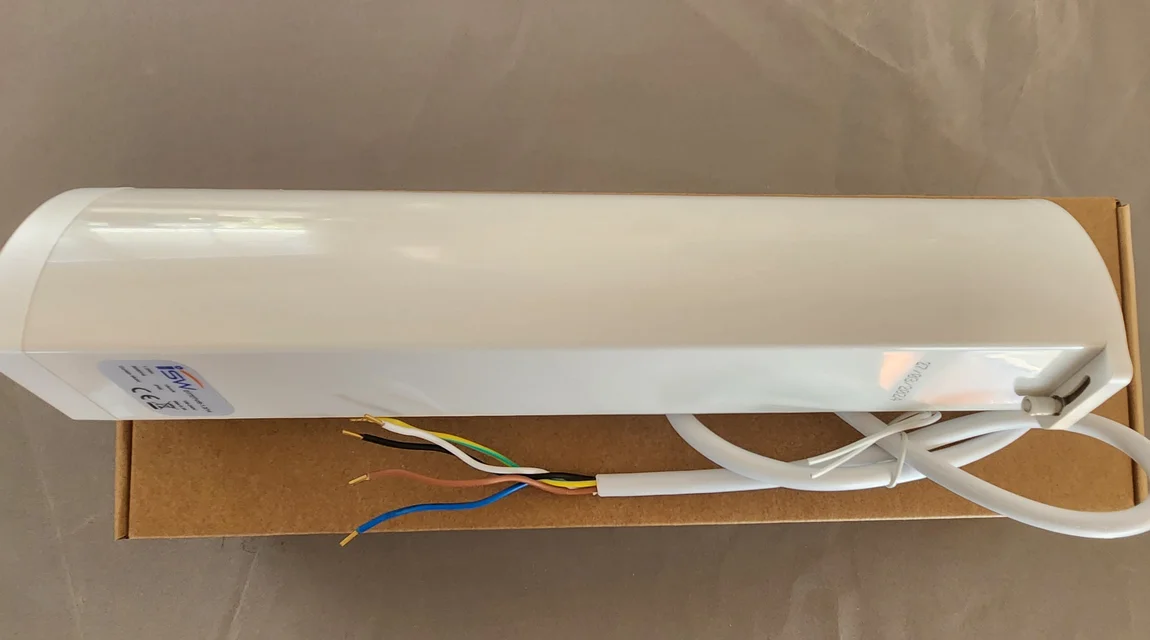

iSW72TV/S-1.2/14 5 wires AC powered Bi-Directional curtain motor

iSW72TV/S-1.2/14 5 wires AC powered Bi-Directional curtain motor
The iSW72TV/S 5 wires AC powered Bi-Directional curtain motor is our newest arrived curtain motor, it is similar our iSW72EV/S curtain motor, both of them are 5 wires AC powered curtain motors which can be controlled not only by the remote but also by the wall switch or 3 rd party Home Automation system such as Z-Wave and C Bus Control system etc.through the hardwire, the only different the load-bearing capacity of iSW72EV/S motor is 50kg like other normal curtain motors and 100kg for the iSW72EV/S curtain motor. Both of them are Bi-Directional motors, the new iSW72TV/S motor will be quieter compared to the iSW72EV/S motor, it will give you the more models to choose from.

Functional features:

•Electronic limit, limit memorized after power off.
•Auto Limit Setting
•Touch-start (allowing you to manually pull the curtain and the motor takes over)
•Resistance stop (stops the motor if it senses an obstruction). This is a safety feature but also is used to automatically stop the motor when it reaches the end of it's travel
•Manual operation - when there is no mains power you can still pull the curtains manually
•Built in radio control - 433MHz receiver built in, it's Bi-Directional motor, you can only control it by bi-directional remote.
•Switch or Home Automation system control
•Really quiet operation, the noise level less than 29 dB.
•Stall Protction
•Preferred Stop Position
•AC 100~240V
•Support the RS485 protocol control.

Please note : this model of curtain motor is only suitable for 72 Type of motorised curtain track.
NZ$ 299.00
Limited Stock:
Only 50 remaining at this price
NZ$ 269.10
Purchase Qty:

STANDARD THREE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for the period of three (3) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

Rated Torque : 1.2N.m

Open/close speed : 14 cm/s

Rated power : 45W

Input power : AC 230V 50 Hz

Emission Frequency :  433.925 MHz

Degrees of protection : IP40

Maximal running time : 4 min
