DC1686A single-channel DC RF Receiver

DC1686A single-channel DC RF Receiver

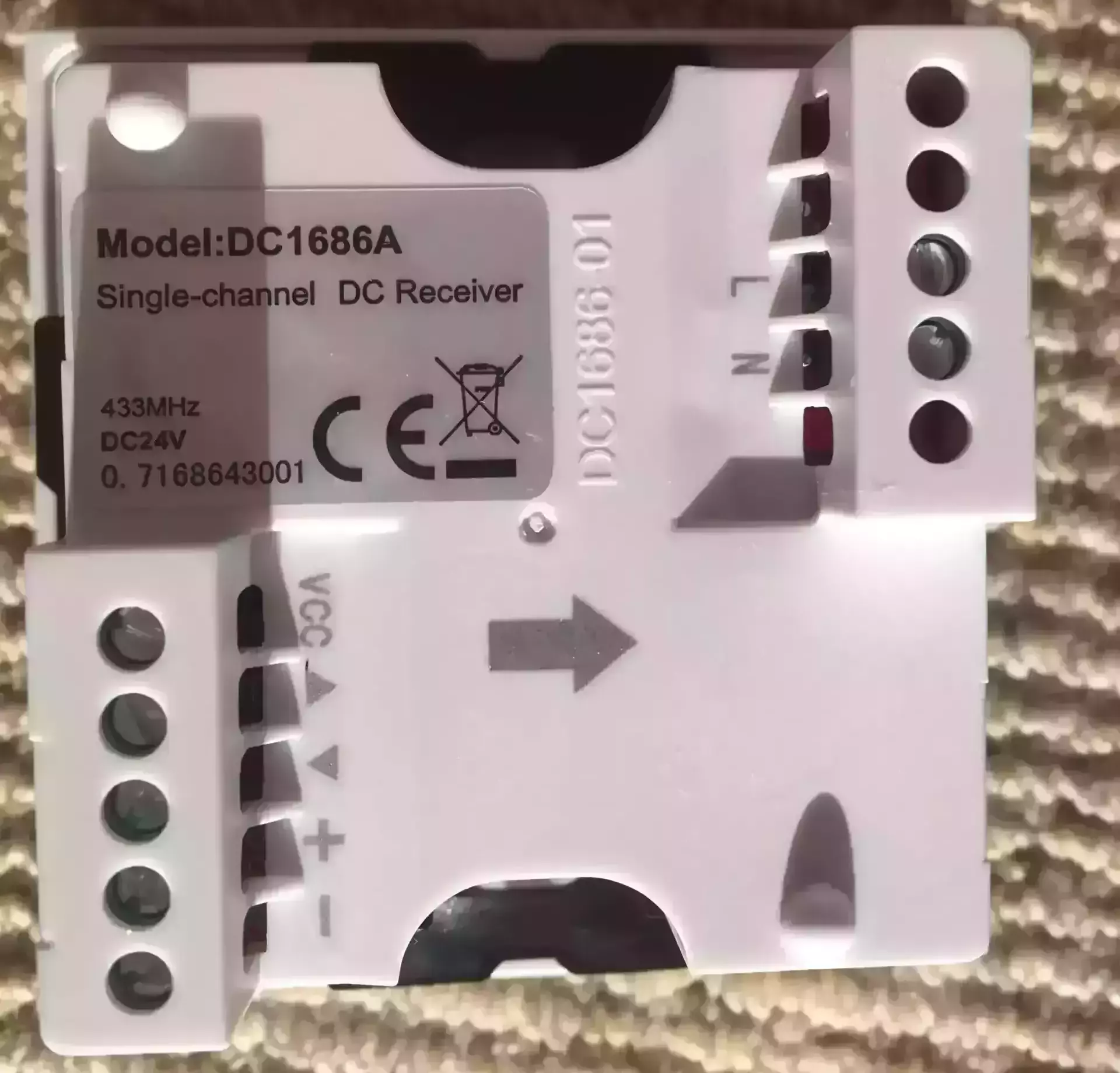

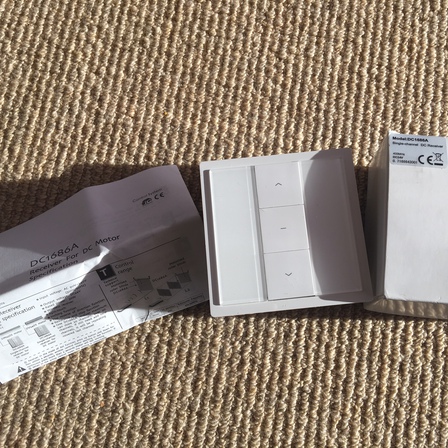

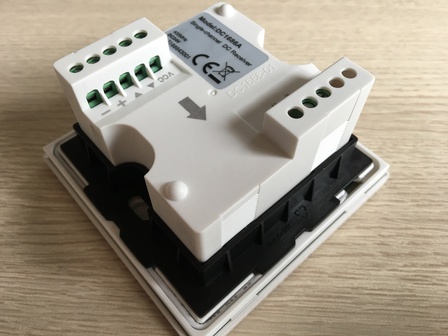

DC1686A single-channel DC RF Receiver is better work with the non built-in receiver tubular motor like DM25DB, AC 90~240V input, DC24V output, you can use it to control tubular motor via the UP, Stop and Down button on it, meanwhile you still can use the handheld remote (emitter) to match the code with this receiver, so it combines the features of the receiver, transformer and switch together.

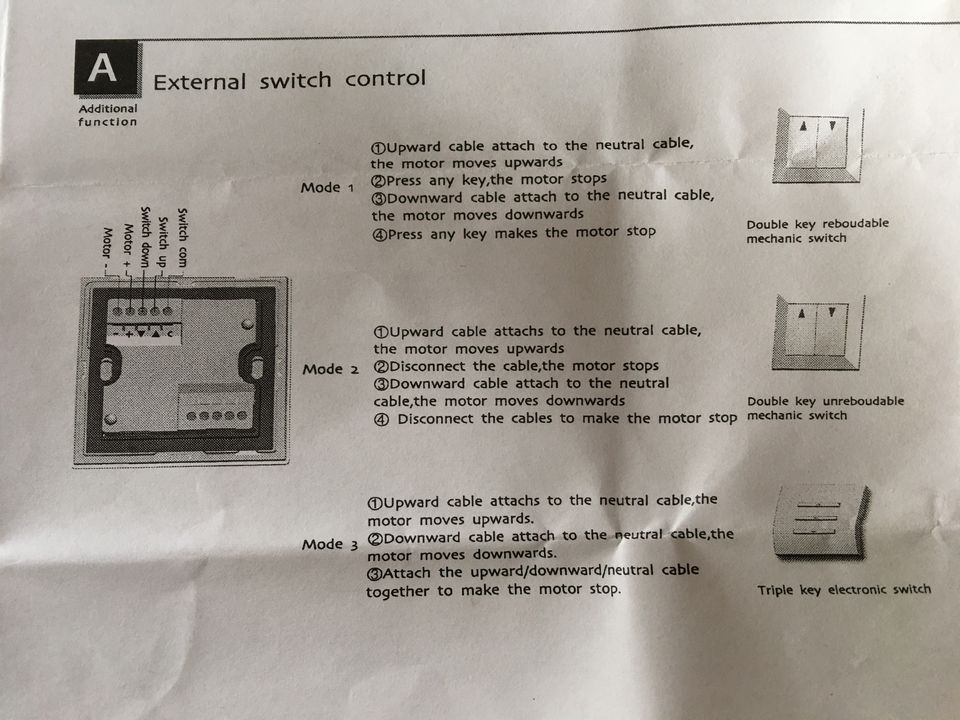

The another Function is it can be connected to an external switch, then you might use this function to control the motor through your home automation system.

Note: It's better work with our switch flush box DC68 according this receiver's size, but the depth of this receiver is larger than the depth of the switch flush box DC68, so you might need to cut off some of the button of the flush box DC68.
NZ$ 99.00
Limited Stock:
Only 19 remaining at this price
NZ$ 84.15
Purchase Qty:

STANDARD ONE YEAR MANUFACTURER WARRANTY: The manufacturer warrants this product to be free from defects in workmanship and materials, under normal residential use and conditions, for a period of one (1) year for the original invoice date. Shipping and handling fees are to be paid for by the customer.

Input Voltage: AC 90~240V (50/60Hz)

Output Voltage: DC 24V

Rated Power: 30W

Light touch switch

Wireless RF receiver

Emission frequency : 433.92 MHz
